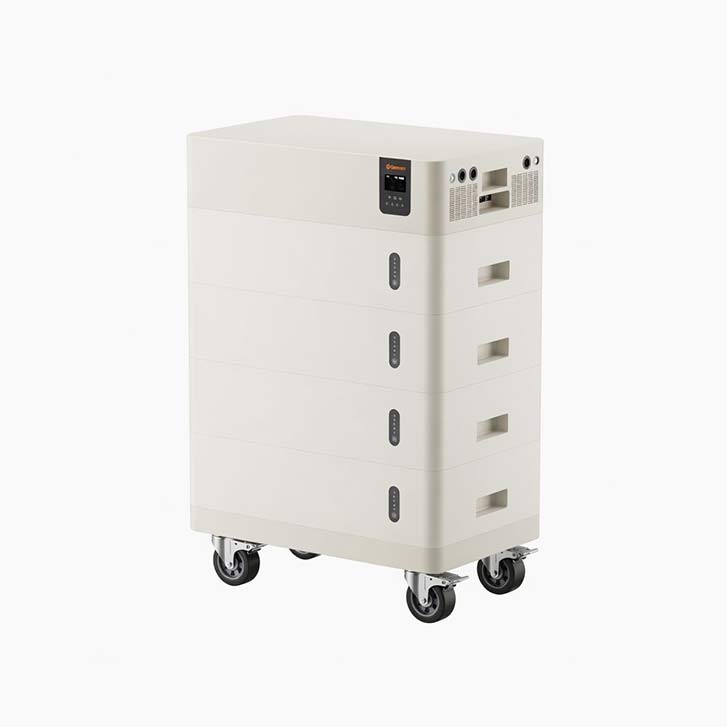

As distributed PV and energy storage rapidly gain adoption, users are no longer satisfied with just “having power available.” They seek maximum self-consumption, minimum electricity costs, and optimal supply reliability. ONESUN’s newly launched Stack bale All-in-One Energy Storage System – BSH Series is an industrial-grade, multi-functional PV-storage inverter designed precisely for these demands.
Full Power Range, Flexible for Any Scenario
The BSH series offers three rated power options – 3.5kW, 6kW, and 11kW – paired with 51.2V battery modules from 100Ah to 400Ah (100/200/300/400Ah selectable), and supports expansion up to 8 batteries in parallel. It easily meets capacity requirements for residential homes, villas, small commercial & industrial sites, off-grid base stations, and independent power systems in harsh environments.
| Model | BSH-6kW51.2V100Ah | BSH-6kW51.2V200Ah | BSH-6kW51.2V300Ah | BSH-6kW51.2V400Ah | BSH-6kW51.2V500Ah |
|---|---|---|---|---|---|
| Solar Input Data | |||||
| Max. PV Array Power | 5500W | ||||
| Max. PV Array Open Voltage | 500 VDC | ||||
| MPPT Voltage Range | 120 ~ 450 VDC | ||||
| MPPT Tracker / Strings | 1 | ||||
| Max. Solar Charge Current | 100A | ||||
| Max. AC Charge Current | 80A | ||||
| Max. Charge Current | 100A | ||||
| Inverter & Controller Data | |||||
| Rated Power | 5000VA / 5000W | ||||
| AC Voltage | 230 VAC | ||||
| Voltage Regulation (Battery Mode) | 230 VAC ± 5% | ||||
| Frequency Range | 50Hz / 60Hz (Auto Sensing) | ||||
| Surge Power | 10000VA | ||||
| Voltage Range | 170-280VAC (For Personal Computers); 90-280 VAC (For Home Appliances) | ||||
| Efficiency (Peak) | Up to 93.5% | ||||
| Transfer Time | 10ms (For Personal Computers); 20ms (For Home Appliances) | ||||
| Phase | Single-Phase | ||||
| Battery Data | |||||
| Nominal Voltage | 51.2 V | ||||
| Rated Capacity | 100Ah | 200Ah | 300Ah | 400Ah | 500Ah |
| Max. Charging / Discharging Current | 100A | 200A | 300A | 400A | 500A |
| Cycle Life | SMA series: ≥6000 Times @ 80%DOD & 0.5C, 25°C | ||||
| SOC Estimation | Yes | ||||
| Intelligent Balance | Yes | ||||
| Sleep and Wake-up | Yes | ||||
| Protection | |||||
| AC Over Current | Yes | ||||
| AC Over Voltage | Yes | ||||
| Over Temperature | Yes | ||||
| Smart Load Management | Yes | ||||
| On Grid | Yes | ||||
| System Data | |||||
| Nominal Output Power | 5000W | ||||
| Rated Capacity | 5.12 kWh | 10.24 kWh | 15.36 kWh | 20.48 kWh | 25.6 kWh |
| Battery Type | LiFePO4 | ||||
| IP Protection | IP50 | ||||
| Warranty | SMA series: 5 Years / ECO series: 2 Years (Optional) | ||||
| Size (W*D*H) | 580*360*489mm | 580*360*653mm | 580*360*917mm | 580*360*981mm | 580*360*1165mm |
| Net Weight | 64.6 kg | 110.6 kg | 156.6 kg | 202.6 kg | 248.6 kg |
| General Data | |||||
| Relative Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||||
| Operating Temperature Range | Charging: 0°C ~ 50°C Discharging: -15°C ~ 60°C | ||||
| Display | LCD | ||||
| Altitude | >2,000m Derating | ||||
| Interface | USB/RS232/RS485/Dry contact | ||||
| Battery Safety Standard | EN/IEC 62109-1 ; EN/IEC 62109-2 | ||||
| System Safety Standard | CE, UN38.3, MSDS | ||||
Six Core Technologies Redefining PV-Storage Value
PV Oversizing for Higher Returns
Allows PV array capacity to exceed inverter rating, boosting annual generation by 15–30% and significantly shortening payback periods.
Smart PV-Grid Complementarity, Zero Curtailment
Dynamic power regulation achieves nearly 100% PV utilization – no more wasted midday generation or evening grid dependency.
Seamless On/Off-Grid Switching, Uninterrupted Critical Loads
UPS-grade transfer time (20ms or 10ms optional) ensures sensitive loads such as monitors, servers, and medical devices keep running without glitches.
Dual Battery Profit Model – Assets That Generate Income
Supports both peak-valley arbitrage and demand management. One system delivers backup power while directly creating savings from electricity price differences.
Transparent Power Management – Every kWh Tracked
Built-in high-precision metering and cloud platform with 15‑minute data granularity helps users optimize consumption behavior.
Industrial-Grade Reliability – Worry-Free in Harsh Environments
Wide operating temperature (-20°C to 55°C), IP54 rating, anti-corrosion coating, and intelligent fan cooling enable 7/24 continuous operation.
Three Working Modes – Energy Flow at Your Fingertips
Choose among Photovoltaic Priority, Battery Priority, or AC Priority with one click – adapt to different tariff strategies and on/off-grid scenarios.
Conclusion
The ONESUN BSH series is not just an inverter plus battery. It is an intelligent energy terminal integrating PV optimization, storage management, grid-switching, and revenue operation – turning storage from a cost center into a profit center.
ONESUN – Empowering every clean kilowatt-hour with hardcore technology.
BSH Series – Full-scenario storage, round-the-clock earnings, all-condition reliability.
