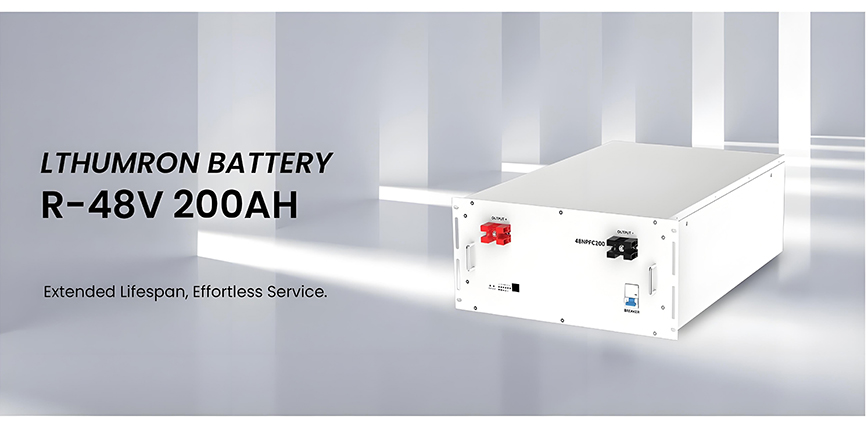

High-reliability 48V 200Ah (9.6–10.44kWh) telecom lithium iron battery for base stations. Rack-mounted design with intelligent BMS, advanced safety protection, long cycle life, and easy installation for telecom power backup systems.
communication towers, data transmission nodes, and other critical infrastructure power backup applications.

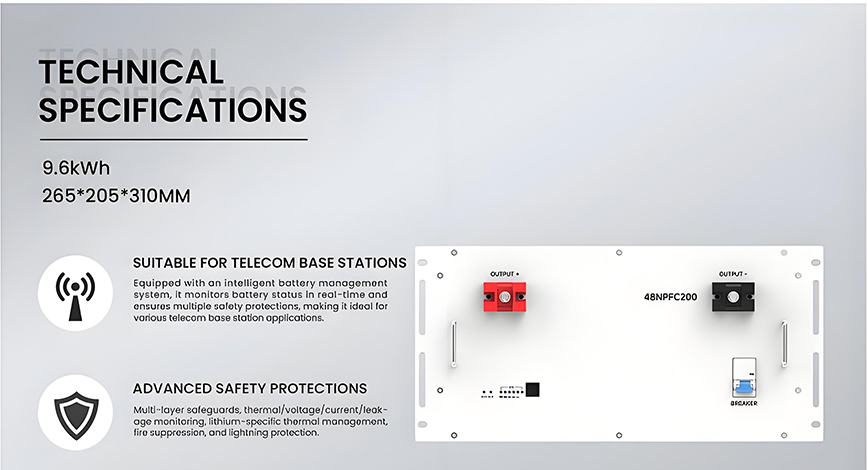

With an energy capacity of up to 9.6–10.44kWh, the battery provides reliable backup power to ensure uninterrupted operation of telecom equipment during grid outages or unstable power conditions. Its compact dimensions (265 × 205 × 310 mm) and standard rack-mount structure allow seamless integration into existing telecom cabinets, significantly reducing installation time and space requirements.
Equipped with an intelligent Battery Management System (BMS), the battery continuously monitors voltage, current, temperature, and state of charge in real time.
| Parameter | Specification |
|---|---|
| Model | R-48V200AH |
| Cell Type | UFePO4 |
| Rated Capacity | 200AH |
| Energy | 9.6KWH |
| Nominal Voltage | 48V |
| End-of-charge Voltage | 54.75V |
| End-of-discharge Voltage | 39V |
| Rated Charge Current | 100A |
| MAX Continuous Discharge Current | 100A |
| MAX Instantaneous Discharge Current | 140A |
| Overcurrent Protection | 140A |
| Ingress Protection | IP50 |
| Cycle Life | >3000 Times @ 80%DOD & 0.5C , 25C |
| SOC estimation | Yes |
| Intelligent Balance | Yes |
| Parallel Connection | Yes |
| Sleep and Wake-up | Yes |
| Protection Function | Over-charge, Over-discharge, Over-current, Short-circuit, Over-voltage, Under-voltage, Over-high/low temperature |
| Operating Temperature | Charging: 0℃-55℃ ; Discharging: -20℃-55℃ |
| Storage Temperature | -30℃-60℃ |
| Storage Humidity | <90% RH |
| Standard Environmental Condition | Temperature: 25℃±2℃ ; Humidity:45%-75%RH ; Atmospheric Pressure:88KPA~106KPA |
| Size | 482.6*695*230mm |
| Net Weight | Approx. 94.5kg |
| Gross Weight | Approx. 107kg |
| Certification | UN38.3, MSDS |
This intelligent control system enables multiple layers of protection, including over-charge, over-discharge, over-current, short-circuit, thermal management, and leakage detection, ensuring maximum operational safety and system stability.
Designed for low maintenance and long cycle life, the battery supports flexible parallel expansion, making it ideal for scalable telecom power systems. Additional safety features such as thermal protection, fire suppression readiness, and lightning protection compatibility further enhance its reliability in outdoor and harsh operating conditions.
Thanks to its high energy density, strong environmental adaptability, and robust safety architecture, the 48V 200Ah telecom lithium iron battery is an ideal choice for telecom base stations, communication towers, data transmission nodes, and other critical infrastructure power backup applications.
