R-51.2V 200AH-Communication rack battery

Brand

Support

Model

Support

Country of Origin

China

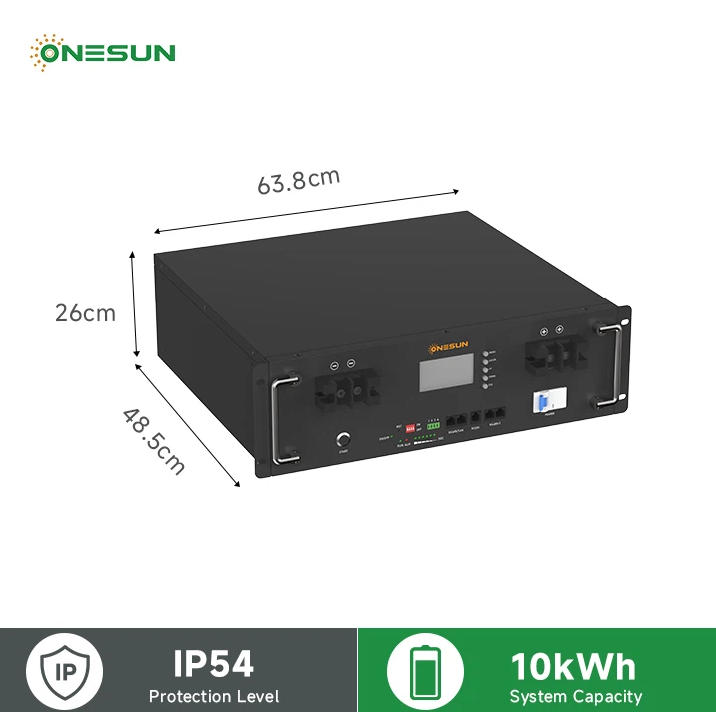

Dimension (W, D, H)

W & D ≤560mm, H (Specify)

IP Degree

≥ IP50

Power System Controllers Compatible List

Attach the List

Cells are Replaceable

Support

Scalability

≥ 15 Pack Connected in Parallel

Application

Telecom-Grade

Installation Mode

Rack Mounted

Energy Density (Wh/kg)

≥ 150

Pack Passive Protection (CB)

Support

Cell Information

Brand

EVE

Model

Support

Date of Manufacture

Not Exceed 6 Months

Cell Chemistry & Technology

LiFePO4 (LFP)

Pack Operating Conditions

Operating Temperature (Charging)

0°C - 55°C

Operating Temperature (Discharging)

≤ -10 - ≥ 60°C

Storage Temperature

≤ -10 - ≥ 60°C

Self Discharge Rate/Month @25°C

≤ 2%

Relative Humidity (RH%)

0 - ≥ 80% Non-Condensed

Service Life

Cycle Life

≥6000 Cycles @ ( ≥ 80% DoD, ≥ 25°,0.2C )

Calendar Life

≥ 10 Years @ ( ≥ 25°C)

BMS Specs

Automatic Cell Balancing

Support

Cell Balancing Technology

Active Balancing

Balancing Current

≥ 1.5A

Temperature Sensors

≥ 4

Operating Temperature

≤ -20 - ≥85°C

BMS Components

Automotive-Grade or Higher

Historical Data Logs

≥ 50000 Record

Data File Management

Export Data Logs Capeability

Auto Addressing

Support

BMS Protection Functions

Charge Overcurrent Protection

Support

OCP Alarm [Value, Hysteresis, Delay Time]

Support

OCP Fault [Value, Hysteresis, Delay Time]

Support

Discharge Overcurrent Protection

Support

OCP Alarm [Value, Hysteresis, Delay Time]

Support

OCP Fault [Value, Hysteresis, Delay Time]

Support

Overvoltage Protection

Support

OVP Alarm [Value, Hysteresis, Delay Time]

Support

OVP Fault [Value, Hysteresis, Delay Time]

Support

Undervoltage Protection

Support

UVP Alarm [Value, Hysteresis, Delay Time]

Support

UVP Fault [Value, Hysteresis, Delay Time]

Support

Charge Overtemperature Protection

Support

OTP Alarm [Value, Hysteresis, Delay Time]

Support

OTP Fault [Value, Hysteresis, Delay Time]

Support

Discharge Overtemperature Protection

Support

OTP Alarm [Value, Hysteresis, Delay Time]

Support

OTP Fault [Value, Hysteresis, Delay Time]

Support

Charge Undertemperature Protection

Support

UTP Alarm [Value, Hysteresis, Delay Time]

Support

UTP Fault [Value, Hysteresis, Delay Time]

Support

Discharge Undertemperature Protection

Support

UTP Alarm [Value, Hysteresis, Delay Time]

Support

UTP Fault [Value, Hysteresis, Delay Time]

Support

Capacity Protection

Support

Low Capacity Protection Alarm [Value, Hysteresis, Delay Time]

Support

Low Capacity Protection Fault [Value, Hysteresis, Delay Time]

Support

Safety

IEC 62619, IEC62368

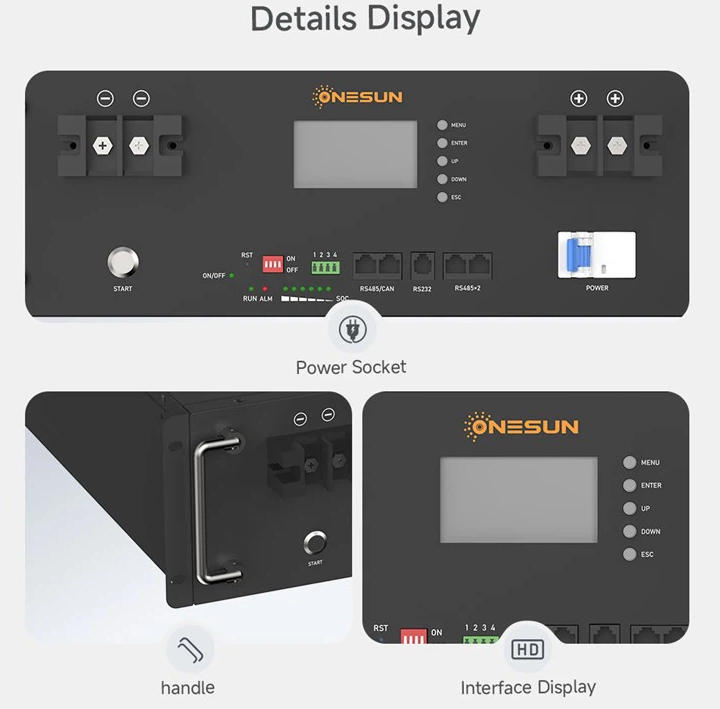

Status & Alarm LEDs

SoC Indicator

Support

Charge Indicator

Support

Discharge Indicator

Support

Run Indicator

Support

Alarm Indicator

Support

Documents & Graphs

BMS Data Sheet

Support

BMS Installation & Operation User Manual

Support

Pack Data Sheet

Support

Pack Installation & Operation User Manual

Support

Pack Maintenance and Troubleshooting User Manual

Support

Software Configuration Manual

Support

Factory Test Reports FTR

Support

Origin Certificate

Support

Connection Diagrams

Support

Self Discharge at Different Temperature Graph

Support

Cycle Life at Different DoD and Different Temp Graph

Support

Charge Performance at Different Temperature Graph

Support

Discharge Performance at Different Temperature Graph

Support

State of Charge (SoC) at Different Discharge Rate Graph

Support

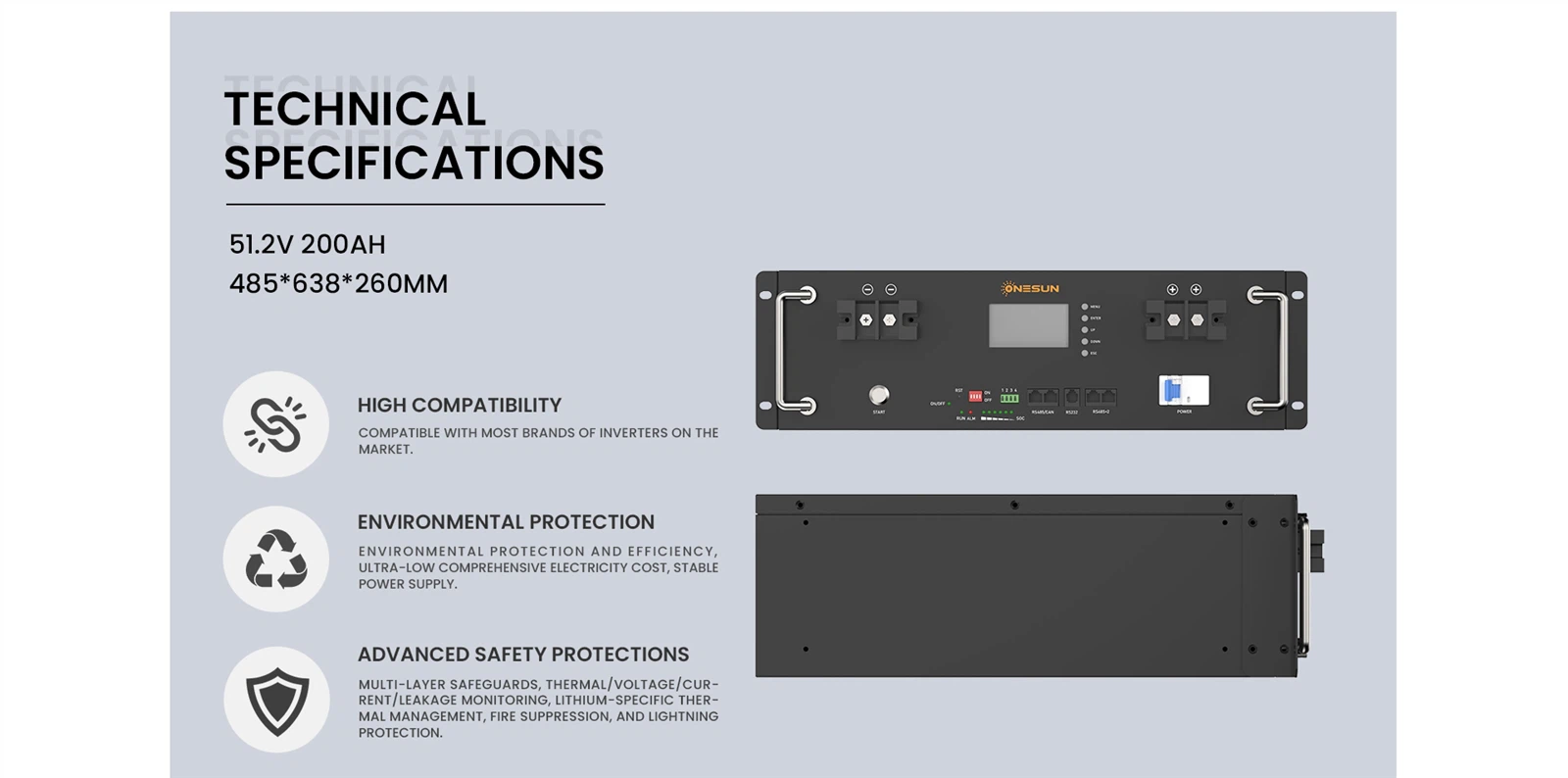

Technical Specifications

Rated (Nominal) Voltage [V]

51.2

Rated Capacity Ah (0.2C, 25°C)

100/150/200

Rated Energy Wh (0.2C, 25°C)

Specify

End-of-Discharge Voltage [V]

≥ 44.8V

Recommended Charge Current [C-Rate]

≥ 0.5C

Recommended Discharge Current [C-Rate]

≥ 0.5C

Max. Continuous Charge Current [C-Rate]

≥ 1C

Max. Continuous Discharge Current [C-Rate]

≥ 1C

Peak Charge Current [C-Rate]

≥ 1.2C

Peak Discharge Current [C-Rate]

≥ 1.2C

Recommended Charge Current [In Parallel] [C-Rate]

≥ 0.5C

Recommended Discharge Current [In Parallel] [C-Rate]

≥ 0.5C

Charge Voltage [V]

56.0V - 57.6V, configurable via BMS

Pack Internal Impedance

≤ 30mΩ

Management & Monitoring

Full Local Monitoring & Management

Support

Supported Local Communication Protocols

Specify

PC Software, Drivers & Local Communication Cable

Support

Supported Remote Communication Protocols

Specify (TCP/IP, Modbus, SNMP, Other)

Supported Wireless Communication

WiFi, or Bluetooth

Supported Mobile Apps.

Android

Supported GNSS

Integrated GPS required. Support for GLONASS/Galileo/BeiDou is preferred

Accessories

DC Power Cables (Positive & Negative)

Length: 1m, CSA: 35mm2

LFP - LFP Communication Cable

LFP - LFP Communication Cable

Power System Controller - LFP Communication Cable

Length: ≥ 2m

Ground Wires

HAVE

Support & Warranty

Warranty Period

≥ 7 Years Or 6000 Cycles

Warranty Scope

Warranty shall be valid provided the battery is used within the specified operating conditions and with approved compatible equipment. Warranty shall cover defects in materials and workmanship, including premature capacity degradation below 80% of rated capacity within the warranty period

Manufacturer Support (Website/WhatsApp/Direct Call)

WhatsApp/Direct Call

Training

Training for 8 Engineers

Brief training for personnel with technical background and experience is provided free of charge. Zero-base training requires an additional fee.
