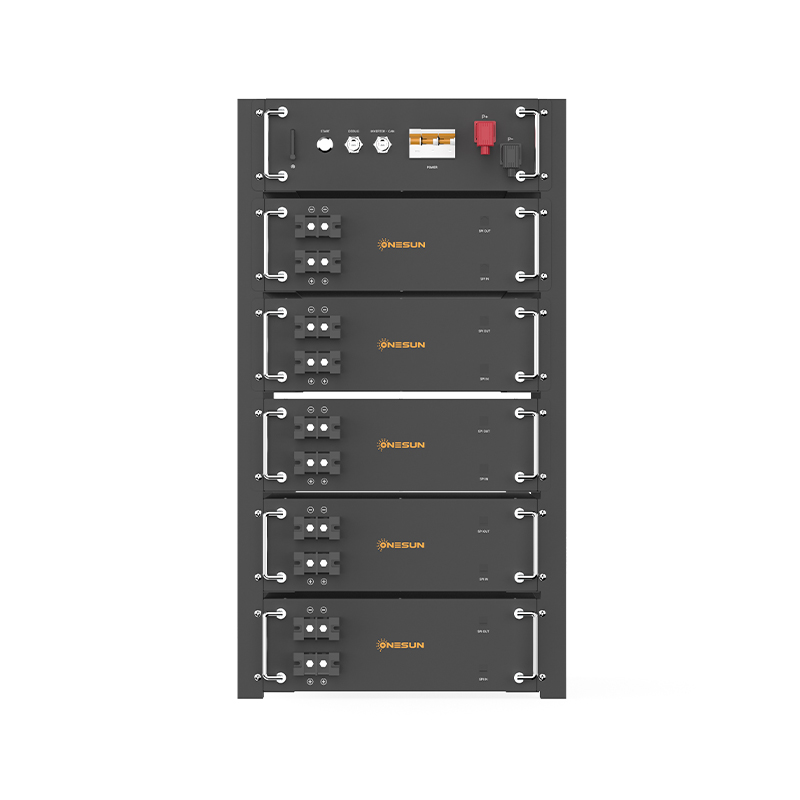

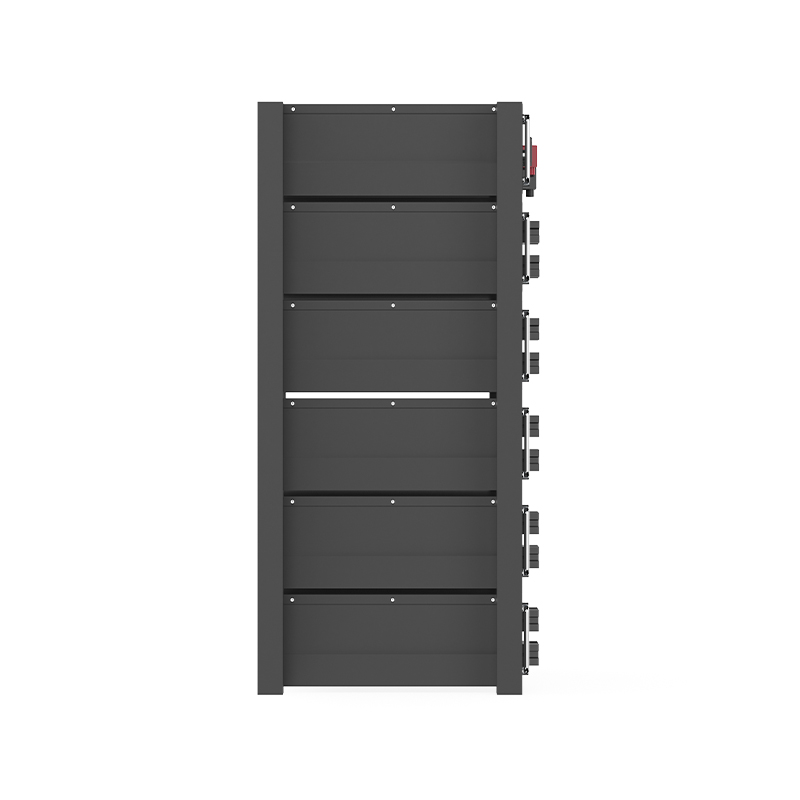

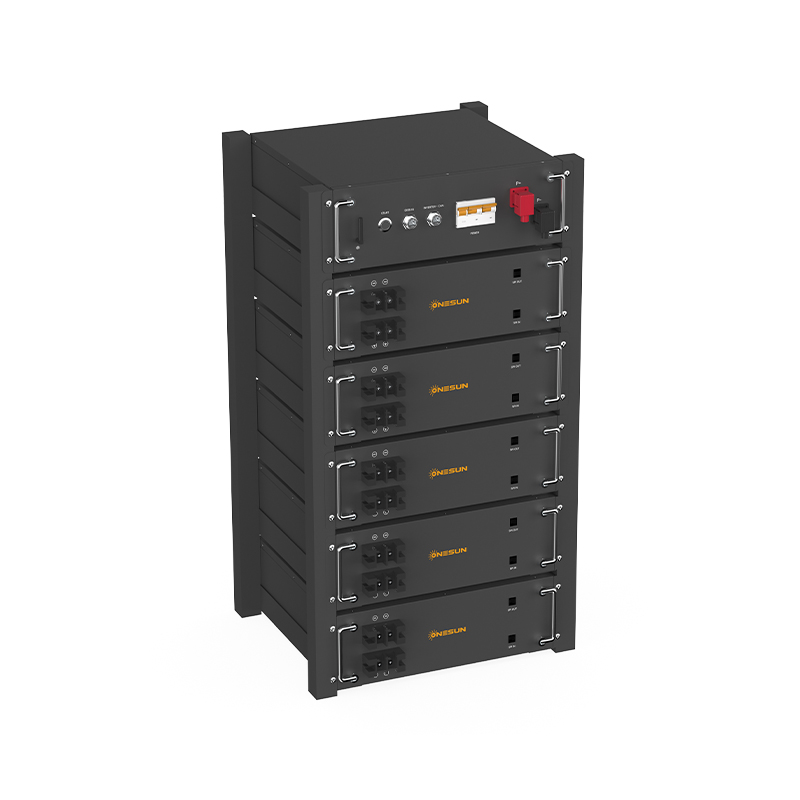

High-voltage Rack-mounted Battery

HVR-204V100AH

Support customization (product appearance, product power)

The High-voltage Rack-mounted Battery is designed for residential energy storage, commercial & industrial applications, and microgrid systems. It uses LiFePO₄ (Lithium Iron Phosphate) cells, ensuring high safety, long cycle life, and modular scalability. With a standard rack-mounted design, it allows for easy installation, maintenance, and capacity expansion.

Consult

Features Technical Indicators Overall Dimension

Key Features

* High Safety: Built with LiFePO₄ cells, offering excellent thermal stability and no memory effect.
* Modular Design: Supports multiple modules in series and parallel, enabling flexible voltage and capacity expansion.
* High Energy Density: Provides higher energy storage in limited space.
* Long Lifespan: Cycle life exceeds 6000 times (80% DOD).
* Intelligent BMS: Real-time monitoring and protection against overcharge, over-discharge, overcurrent, short-circuit, and overtemperature.
* Strong Compatibility: Seamlessly integrates with mainstream inverter brands.

* Easy Installation: Standard 19/21-inch rack-mounted structure, suitable for cabinet or room installation.

Technical Specifications

Category	Specification
Cell Type	LiFePO₄ (Lithium Iron Phosphate)
Single Module Voltage	48V / 51.2V (typical)
System Voltage Range	150V – 600V (configurable)
Capacity Range	5kWh / 10kWh per module, expandable to >100kWh
Cycle Life	≥6000 cycles @ 25℃, 80% DOD
Efficiency	≥95%
Operating Temperature	-20℃ ~ +60℃
Storage Temperature	-20℃ ~ +45℃
Communication Protocols	RS485 / CAN / Modbus
Protection Level	IP20 (indoor cabinet installation)
Installation	Rack-mounted / Wall-mounted (optional models)
Dimensions	Standard 19/21-inch rack (height depends on module count)
Weight	Approx. 40-50kg/module

Applications

* Home Energy Storage System (HESS)
* Commercial & Industrial Energy Storage
* PV + Storage + EV Charging integrated solutions
* Data Center UPS Backup Power

* Microgrid, Off-grid & On-grid Storage
