Floor-standing Battery

S-51.2V314AH

Support customization (product appearance, product power)

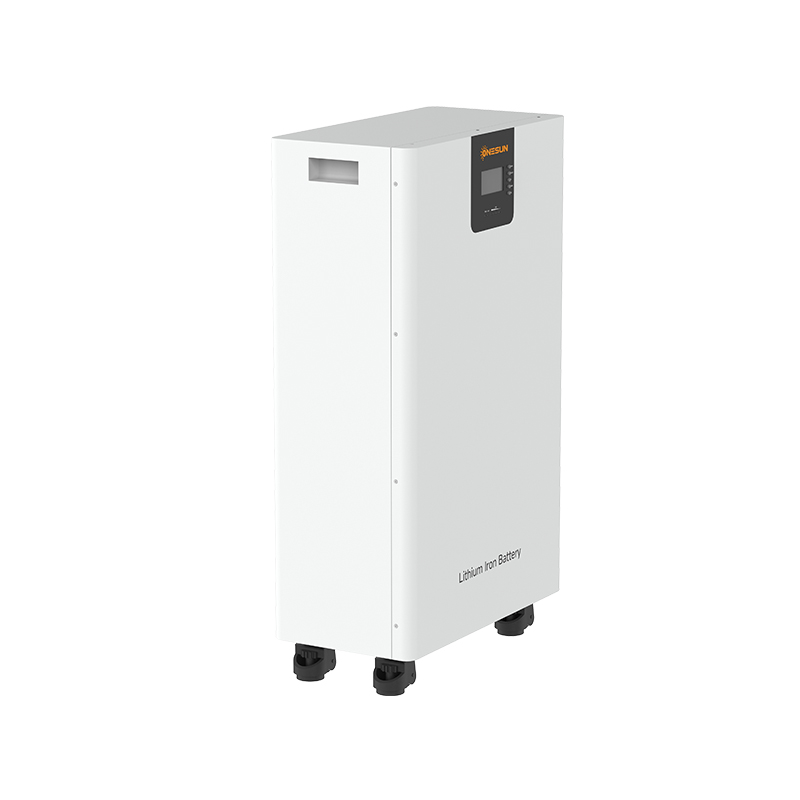

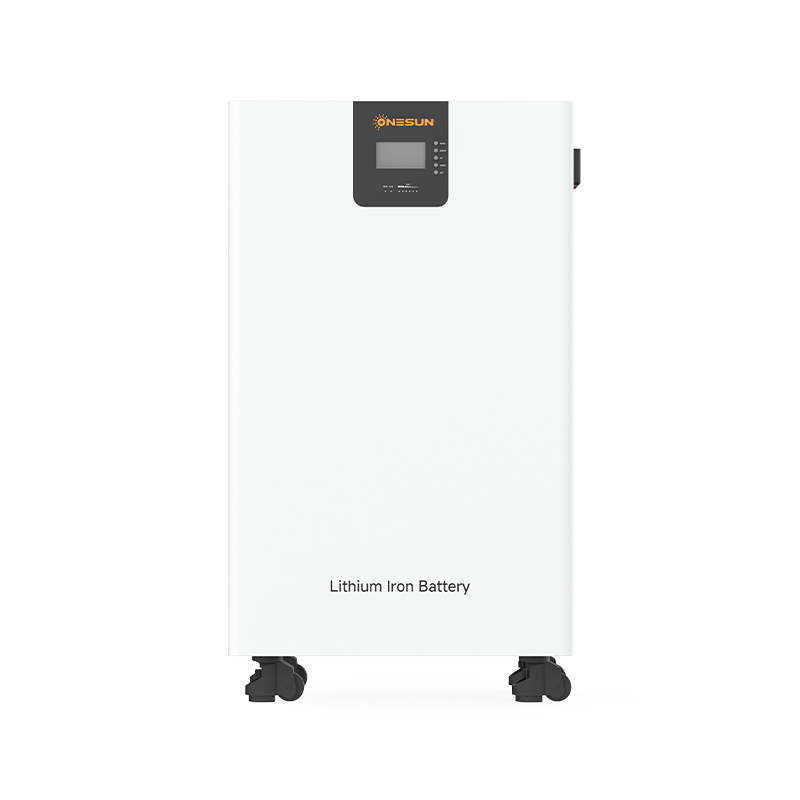

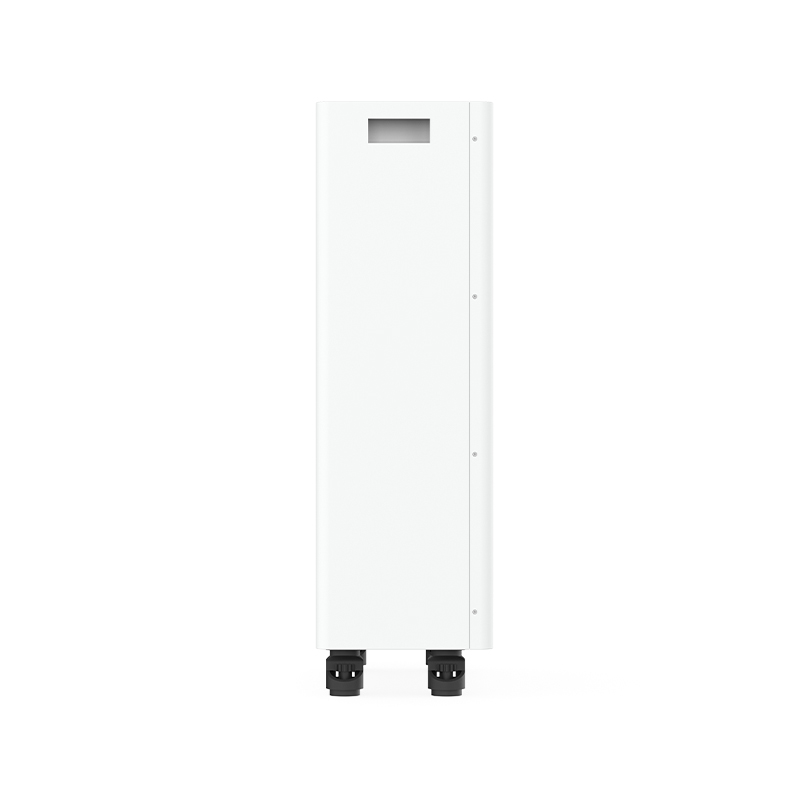

The Floor-standing Battery is a high-performance lithium battery energy storage product with a modular design. It is easy to install, suitable for residential, commercial, and industrial energy storage systems. Its floor-standing design ensures stability, simplifies operation and maintenance, and allows flexible integration with photovoltaic systems, inverters, and other equipment, providing a safe and long-lasting energy solution.

Consult

Features Technical Indicators Overall Dimension

Key Features

* High Safety: Equipped with LiFePO₄ cells, offering high stability and long cycle life.

* Floor-standing Design: Easy installation, small footprint, and suitable for various applications.

* Intelligent Battery Management System (BMS): Real-time monitoring of battery status with protection against overcharge, over-discharge, overcurrent, and overtemperature.

* Modular Expansion: Supports parallel connection of multiple units to meet different energy storage capacity requirements.

* LCD Display: Real-time display of battery operating information with intuitive operation.

* Long Lifespan: Cycle life up to 6000+ times.

Technical Specifications (Reference)

* Battery Type: Lithium Iron Phosphate (LiFePO₄)

* Nominal Voltage: 51.2V

* Capacity Options: 100Ah / 200Ah / 280Ah

* Energy Capacity: 5.12kWh – 14.34kWh

* Cycle Life: ≥6000 cycles (80% DOD, 25℃)

* Communication Interfaces: RS485 / CAN

* Operating Temperature: Charging 0\~55℃, Discharging -20\~55℃

* Protection Rating: IP20 / IP30 (optional)

* Installation Method: Floor-standing

* Dimensions: Approx. 600mm × 400mm × 1200mm (varies by capacity)

* Weight: Approx. 70 – 150kg (depending on capacity)

Applications

* Residential energy storage systems (PV + storage solutions)

* Commercial energy storage systems

* Industrial peak-shaving and valley-filling applications

* Emergency backup power
