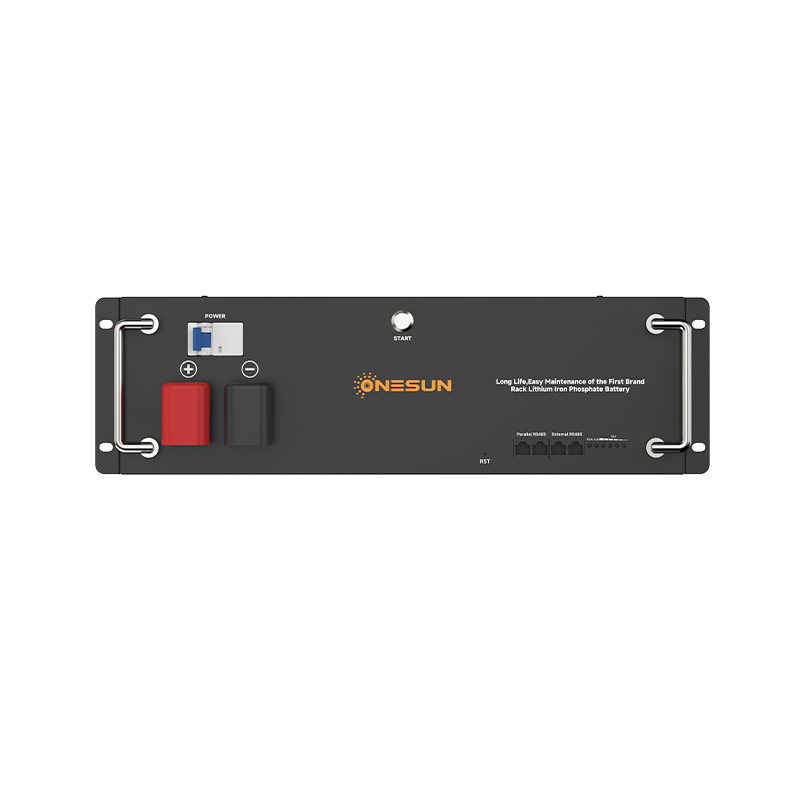

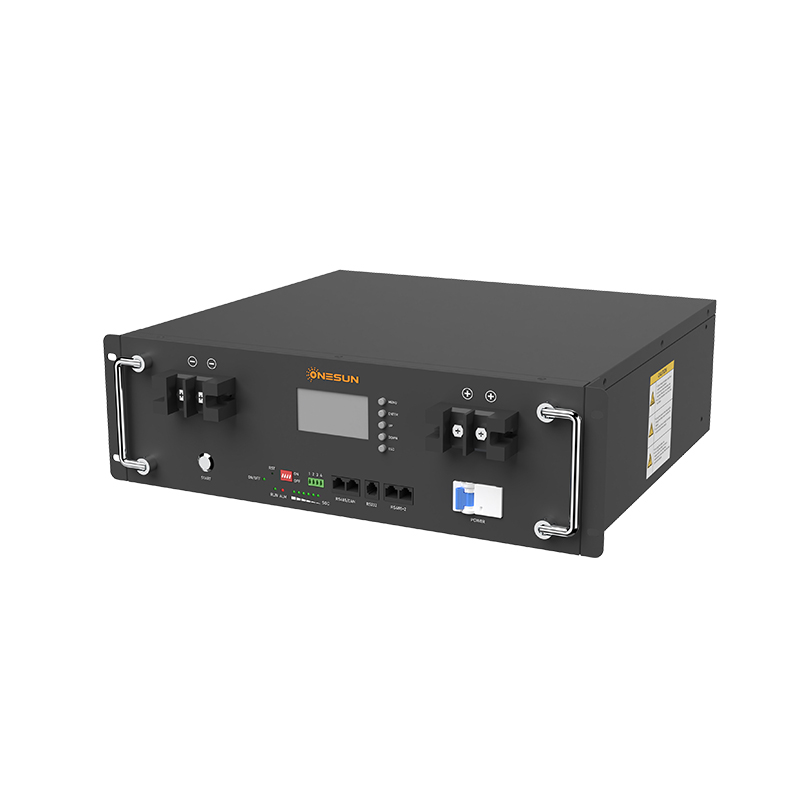

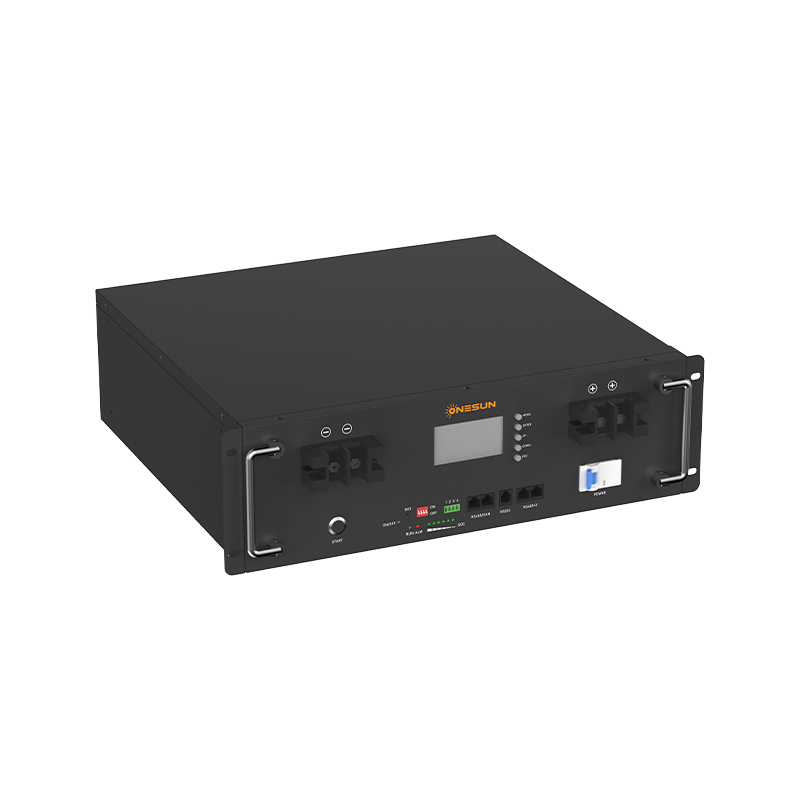

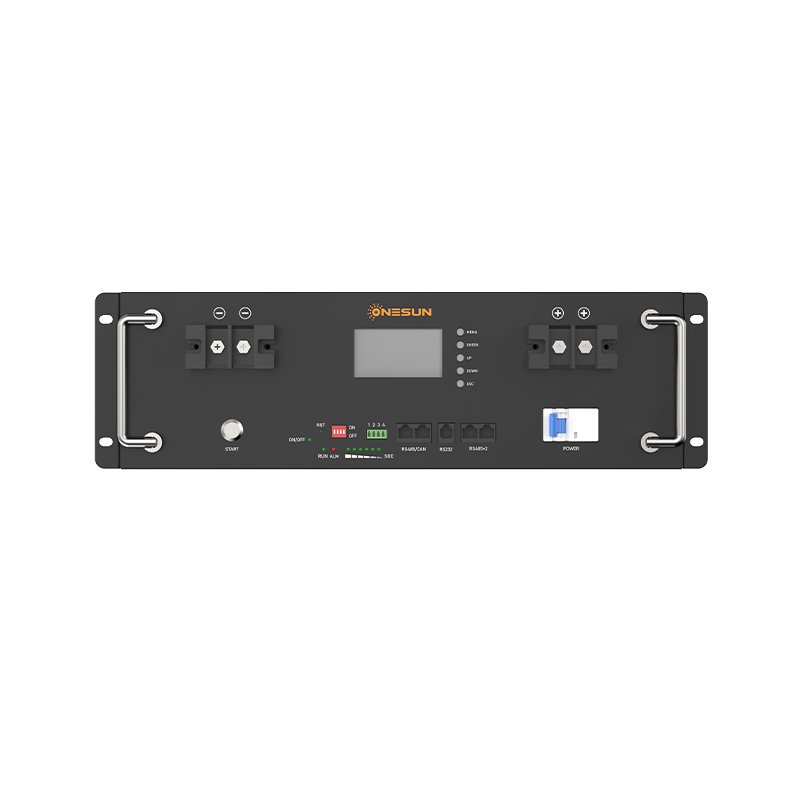

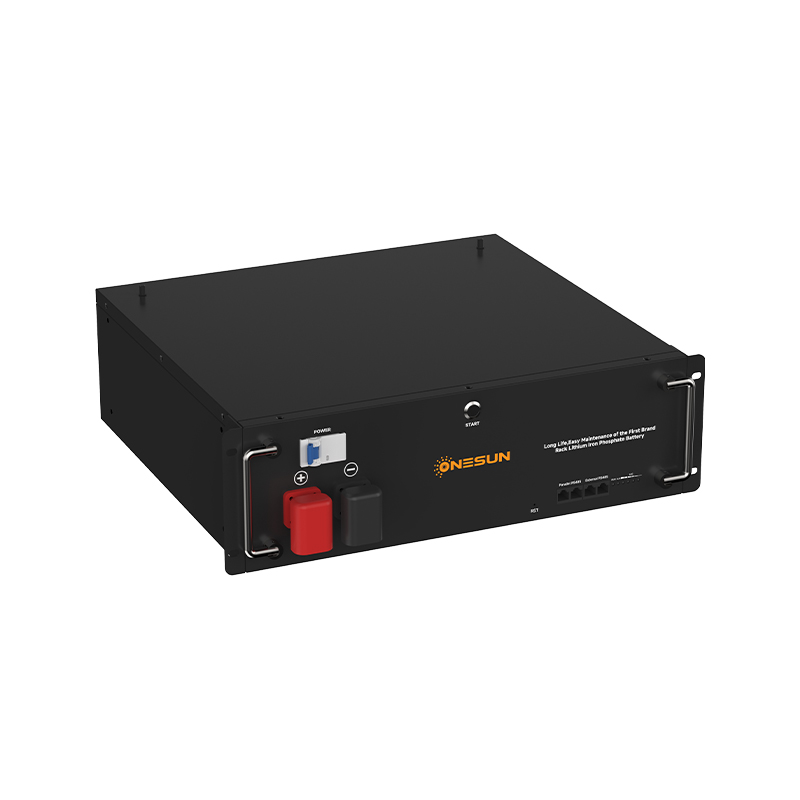

Rack-mounted Battery

R-51.2V100AH

Support customization (product appearance, product power)

The rack-mounted battery is a high-performance energy storage solution with a modular design, suitable for residential, commercial, and industrial energy storage systems. With a focus on safety, stability, and long service life, it is easy to install and expand, meeting diverse energy demands.

Consult

Features Technical Indicators Overall Dimension

Product Features

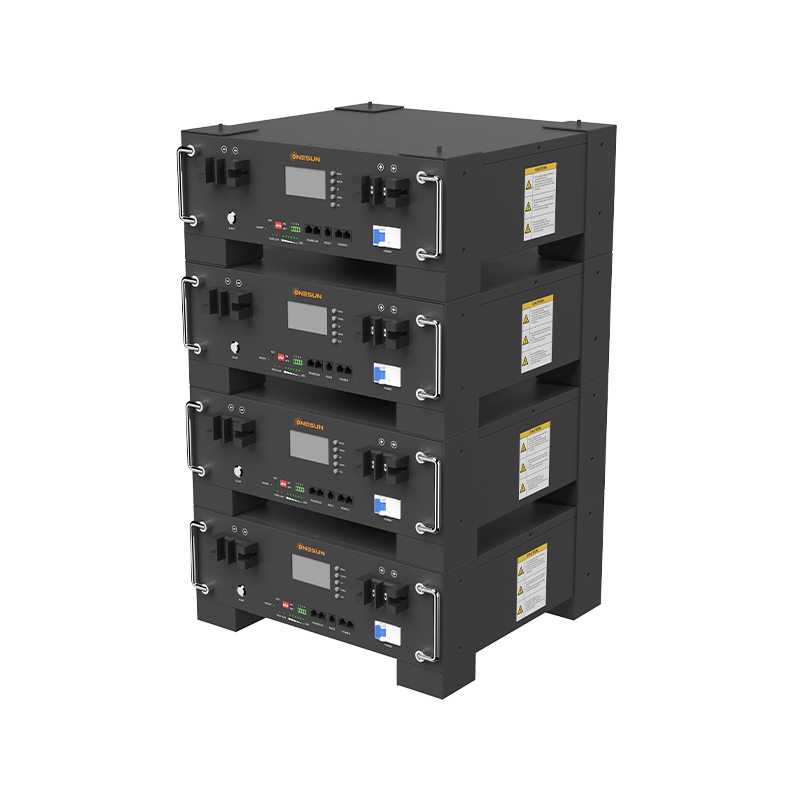

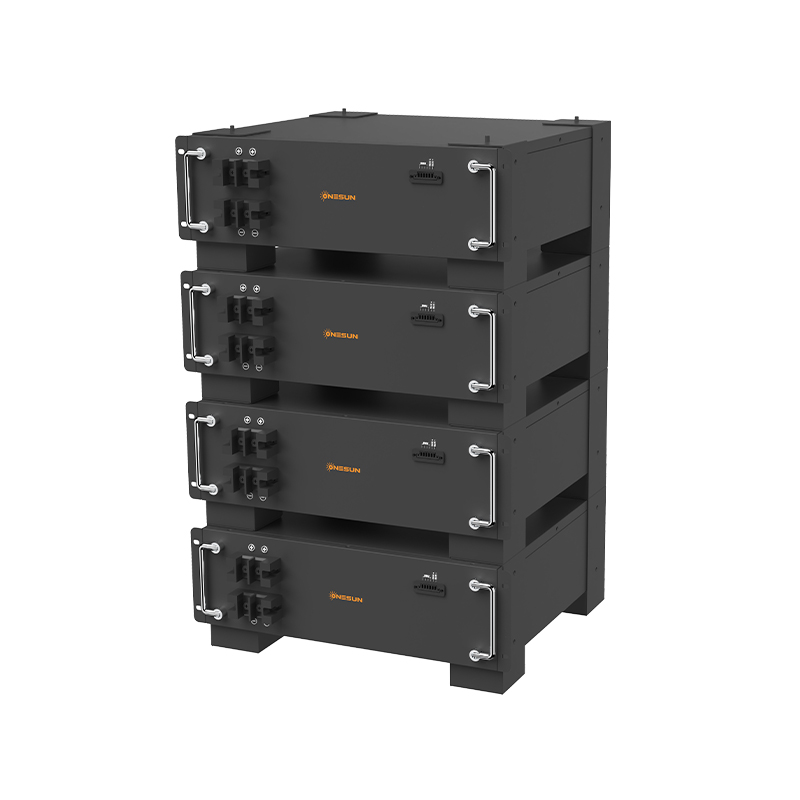

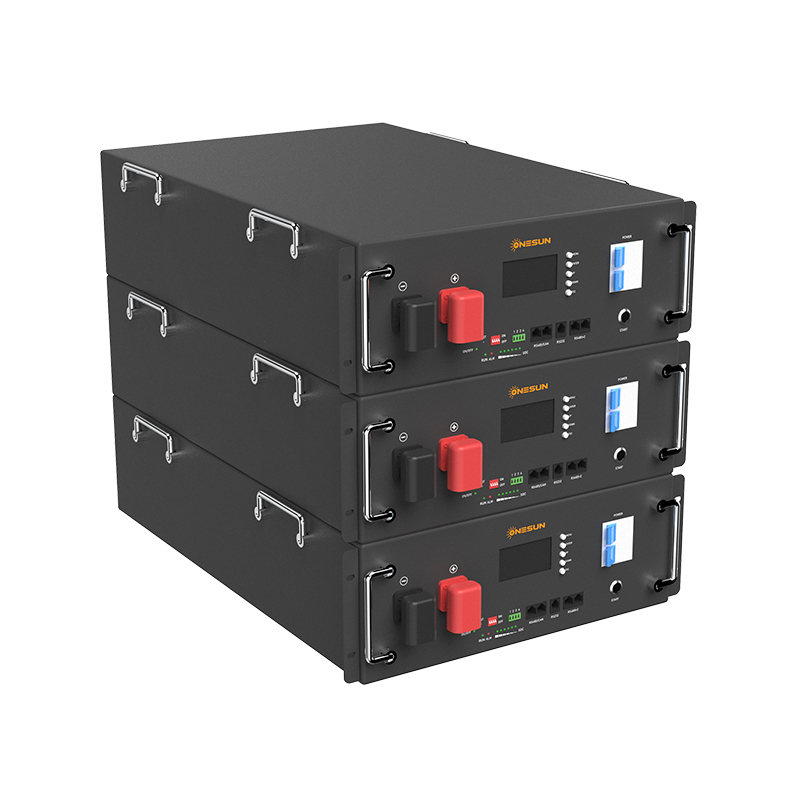

* Modular Design: Supports multi-module parallel connection with flexible capacity expansion.
* High Safety: Built-in Battery Management System (BMS) with overcharge, over-discharge, overcurrent, short-circuit, and temperature protection.
* Long Cycle Life: Equipped with LiFePO₄ cells, offering more than 6000 cycles.
* High Compatibility: Seamlessly integrates with mainstream inverter brands.
* Easy Installation: Standard 19-inch rack-mounted design for convenient installation and maintenance.
* Smart Monitoring: RS485 / CAN communication interface for remote monitoring and management.

Technical Specifications (Typical Model)

* Battery Type: Lithium Iron Phosphate (LiFePO₄)
* Nominal Voltage: 48V (customizable)
* Capacity Range: 50Ah / 100Ah / 200Ah
* Energy Range: 2.4kWh – 10kWh (per module)
* Cycle Life: ≥6000 cycles @80%DOD, 25℃
* Operating Temperature Range: Charge 0℃ \~ 55℃; Discharge -20℃ \~ 60℃
* Storage Temperature Range: -20℃ \~ 45℃
* Communication Interface: RS485 / CAN
* Parallel Expansion: Supports multi-module parallel connection (up to hundreds of kWh)
* Installation Method: Standard 19-inch rack-mounted / wall-mounted (optional)

Application Scenarios

* Residential energy storage systems (with solar PV)
* Commercial energy storage solutions
* Microgrid and off-grid systems
* Data center backup power
* Industrial equipment emergency power supply
