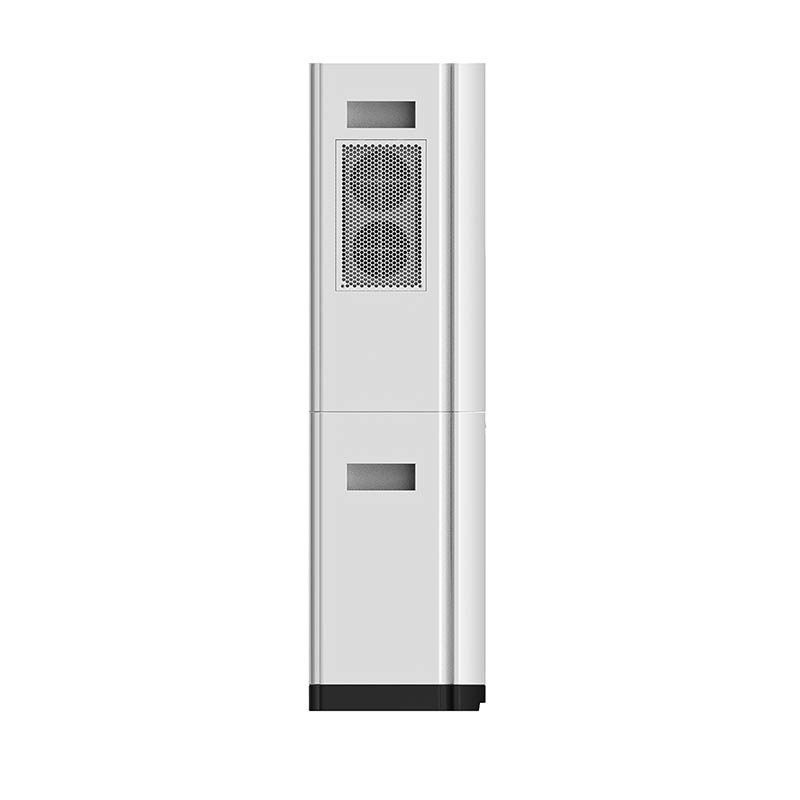

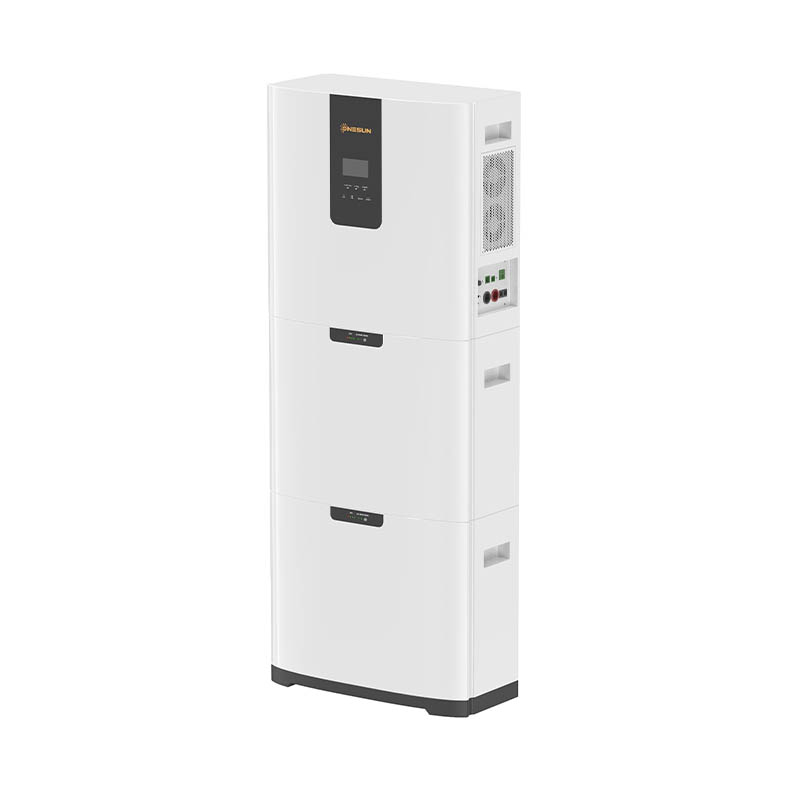

5KW All In One Solar Power System Solar Inverter With Lithium Ion Battery 51.2V 200Ah Power Storage Systems Back Ups Pv Factory
WSH3KW-51.2V200AH
1. Brand can be OEM or ONESUN.
2. Customization is supported (product appearance, power output).
All-In-One Solar Power System | Modular, Stackable & Wire-Free
Subheading: The Integrated Solution for Simplifying Solar Energy. Generate, Store, and Manage Your Power.
Overview
Revolutionize your energy setup with our next-generation All-in-One Solar Power System. This fully integrated unit combines a high-performance hybrid inverter, an MPPT solar charge controller, and a modular lithium battery into a single, sleek package. Designed for both on-grid and off-grid use with CT compatibility, it intelligently manages energy flow to maximize self-consumption and savings. Its unique stackable, wire-free design allows for effortless expansion from 5.12kWh to 15.36kWh, making it the perfect scalable solution for homes, cabins, and small businesses.
Key Features & Benefits
Fully Integrated Design
The inverter, MPPT, and battery are combined into one unit, saving space and reducing installation complexity and cost.
True Wire-Free Stacking

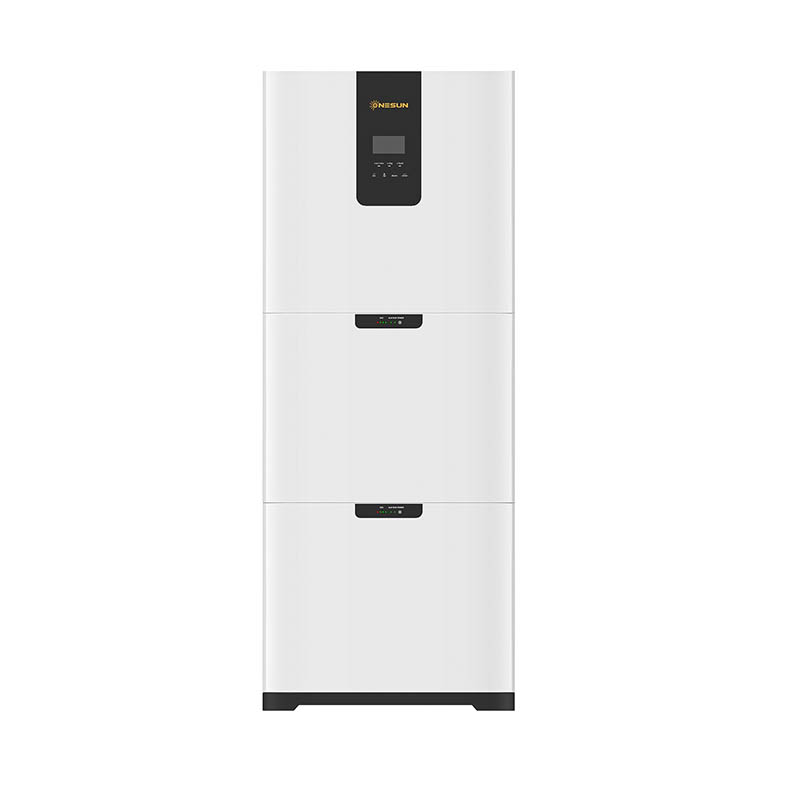

Expand your storage capacity simply by stacking additional battery modules. No messy cables required. Scale from 5.12kWh to 15.36kWh with up to 3 modules.
Hybrid Inverter with CT
Seamlessly switch between on-grid, off-grid, and backup power modes. CT (Current Transformer) support enables zero-grid-injection and optimal self-consumption.
High-Frequency Inverter Technology
Experience high conversion efficiency (>95%) and clean, stable power output. Available in 3kW, 5kW, 8kW, and 10kW power ratings.
Smart WiFi Monitoring & Control
Optional external WiFi module allows for real-time monitoring and control via a mobile app. Track energy production, consumption, and battery status from anywhere.
Safety & Reliability Built-In
Built with premium-grade LiFePO4 cells, each battery module features an independent switch and comprehensive protection against overcharge, over-discharge, short circuit, and overheating.
Technical Specifications
Specification：Details
Inverter Type：High-Frequency Hybrid Inverter
Output Power：3kW / 5kW / 8kW / 10kW (Selectable)
Battery Technology： Lithium Iron Phosphate (LiFePO4)
Battery Voltage: 51.2V
Module Capacity: 100Ah / 5.12kWh
Max. Expansion: 3 Modules / 15.36kWh
Cycle Life: ≥6000 Cycles (to 80% capacity)
Communication: Optional WiFi, RS485, CAN
Cooling : Intelligent Fan Cooling
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Protection Rating: IP21 (Indoor Use)
Ideal Applications
Homes: Reduce electricity bills and gain backup power.
Off-Grid Cabins: Reliable primary power source.
Small Businesses: Power shops and offices during outages or peak hours.
Emergency Backup: Be prepared for blackouts and emergencies.
Why Choose Our All-In-One System?
Modular & Future-Proof: Start small and expand your battery storage as your needs grow.
Smart & Connected: Monitor and control your system remotely with ease.
Safe & Certified: Built with the safest battery chemistry and complies with international standards.
Plug & Play: Designed for a quick and simple installation process. Just connect your solar panels and you're ready to go.
Frequently Asked Questions (FAQ)
Q: Is this system compatible with three-phase power?
A: This model is designed for single-phase power. Please contact us for three-phase custom solutions.
Q: Can I purchase additional battery modules later?
A: Absolutely! Our system is designed for easy future expansion. You can add battery modules at any time.
Q: Are solar panels included?
A: No, solar panels are sold separately. The system is compatible with most PV modules (recommended operating voltage 60-150VDC).
Ready to Get Started?
Take control of your energy with our integrated, scalable solar solution.
